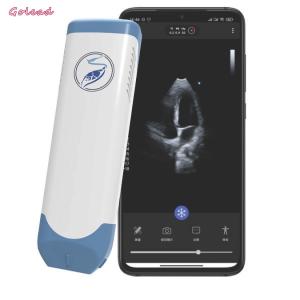

3.6MHz Portable Wireless Ultrasound Probe Phased Array Transducer
DESCRIPTION
The wireless ultrasound probe Lite31P is a powerful and versatile diagnostic tool that enables physicians to acquire and display high-resolution ultrasound data in real-time. Its compact, portable, and software-controlled design allows for convenient and efficient use, while its compatibility with commercial off-the-shelf (COTS) Android and iOS mobile devices ensures greater accessibility and flexibility.
The imaging system software is available as an app, which can be easily downloaded onto a COTS smart device, and features a user-friendly touch-based interface with intuitive icons. The system utilizes a series of wireless transducers that employ Wi-Fi-based technology to communicate with conventional tablet/smartphone devices via Wi-Fi directly, enabling users to export ultrasound images and display them on a range of portable personal devices.
The Lite31P also features a built-in battery, multichannel beamformer, prescan converter, and Wi-Fi components, ensuring that it provides reliable and accurate imaging capabilities at all times.
Finally, the Lite31P's safe design ensures that it can be used in a variety of clinical settings without posing a risk to operators, patients, or other persons nearby. When used in normal conditions, the expected positions of the operator, patient, or other persons near the equipment is the probe, allowing for comfortable and safe use.
PARAMETERS:
| Scanning mode | Electronic Phased Array with 128 elements |
| Display mode | B/C/M |
| Central frequency | 3.6MHz |
| Depth | 189mm |
| Zoom | 4 times |
| Beams | 16 parallel |
| Image Adjust | Gain, TGC, Focus, Harmonic, Denoise, Depth, Dynamic Range, Color Gain, PRF, Steer |
| Measure | Length, Area, Circumference, Angle, Trace |
| Gray | 256 |
| FPS | 8 to 30 frames |
| Packing Dimension | 255*190*60mm |
| Working System | iphone, iPad, Android Smartphone, Android Tablet |
APPLICATIONS
Cardiac
CONTENT INCLUDED
Handheld Wireless Ultrasound Probe – Lite31P Sector Transducer
Internal Battery
Charging Cable
User Manual
Wireless Charger
